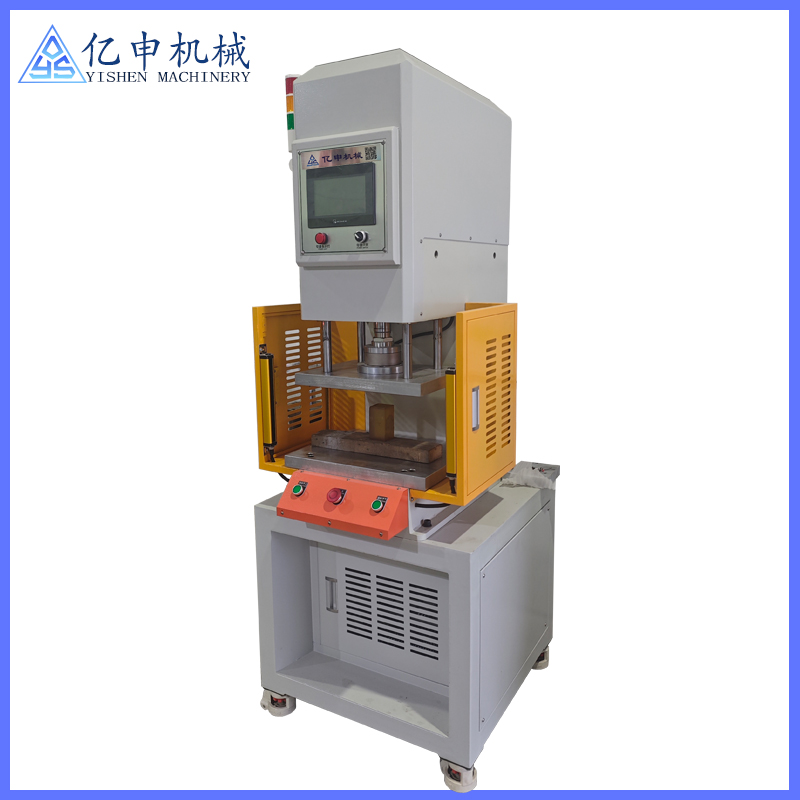

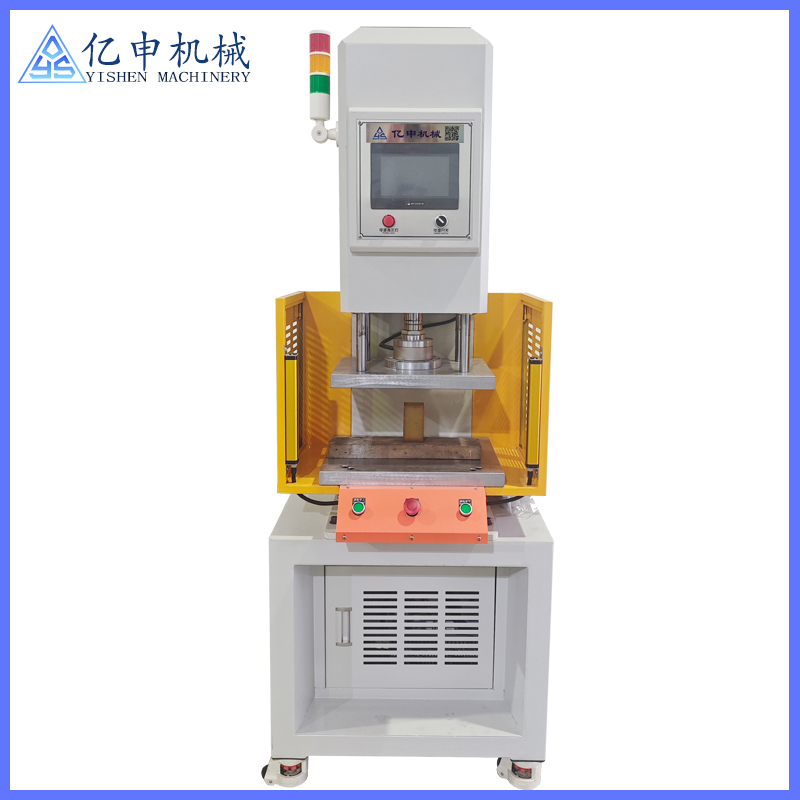

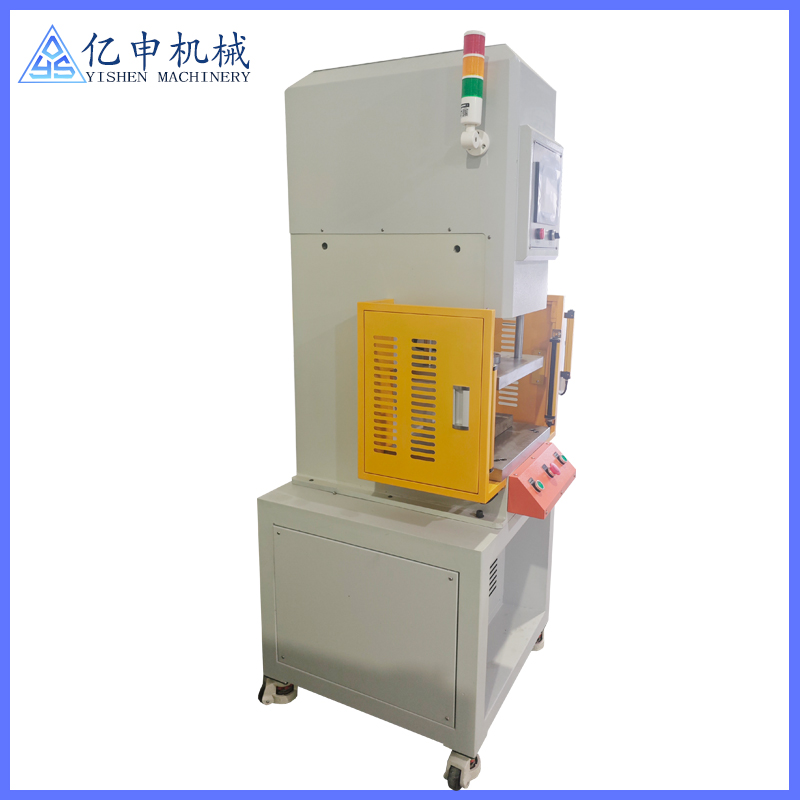

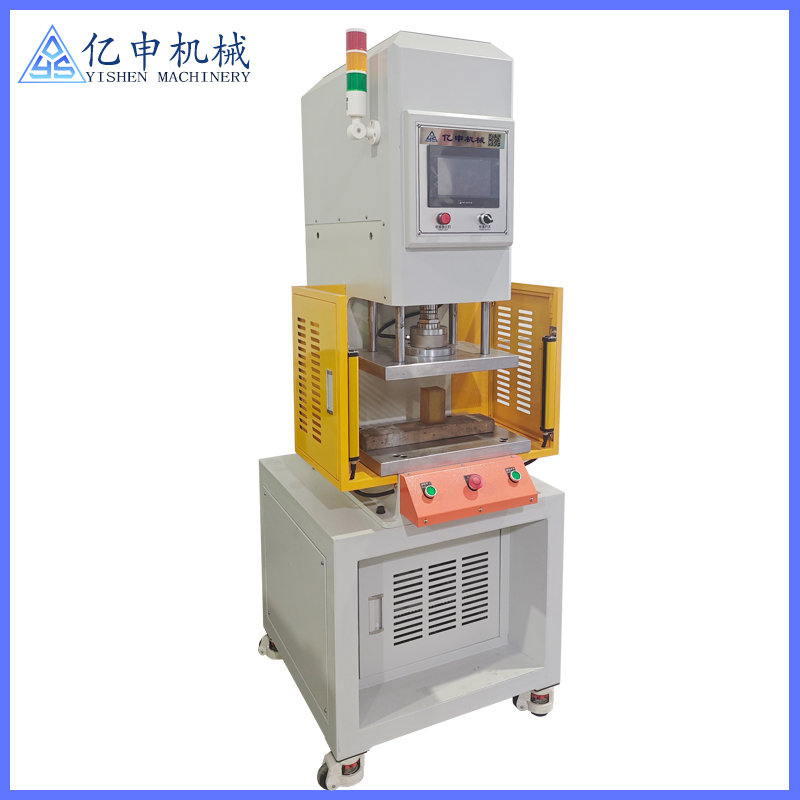

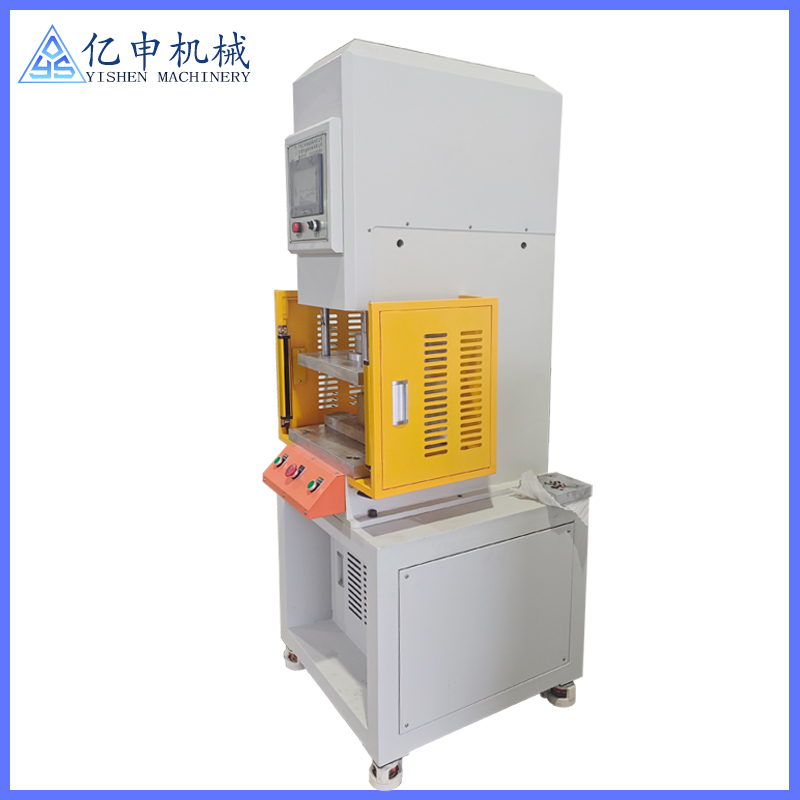

Small electronic servo bearing press

The application range of electronic servo presses is very wide, covering multiple industries. Specifically including:

a. Automobile industry: used for press-fitting of engine components (such as cylinder heads, cylinder liners, oil seals, etc.),

press-fitting of steering gear components (such as gears, pins, etc.), press-fitting of transmission shaft components,

 press-fitting of gearbox components, press-fitting of brake disc components, etc.

b. Motor industry: used for press-fitting of micromotor components (such as spindles, housings, etc.),

press-fitting of motor components (such as bearings, spindles, etc.).

c. Electronics industry: used for press-fitting of circuit board components (such as plug-ins, etc.), press-fitting of electronic components.

d. Home appliance industry: used for press-fitting of home appliance accessories, riveting of home appliance accessories, etc.

e. Machinery industry: used for press-fitting of mechanical parts, automated assembly of lines, life testing of vulnerable parts, etc.

f. Other industries: used for other occasions requiring precise CNC press-fitting displacement and press-fitting force.

The electronic servo press drives a high-precision ball screw through a servo motor to perform precision press assembly operations.

It can achieve full-process closed-loop control of the press force and press depth during press assembly,

thereby achieving precision press assembly with online quality management. This equipment has the characteristics of high precision and high response speed,

and can perform two control modes, position and pressure, and is suitable for manufacturing processes that require precision control.

1. An electronic servo press is a press driven and controlled by a servo motor, which is widely used in industries such as metal forging and refractory materials.

This press drives an eccentric gear through a servo motor to realize the movement of the slider. Since the servo motor has the characteristics of CNC,

the electronic servo press is also widely called a CNC press.

2. The key features of the electronic servo press include:

Any programming of the slider's stroke, speed and pressure: Through complex electrification control, the electronic servo press can be programmed to achieve precise

control of the slider's stroke, speed and pressure.

Efficient operation: Even at low speeds, the electronic servo press can reach the nominal tonnage of the press and achieve efficient production.

3. High flexibility: Compared with traditional mechanical crank presses and hydraulic presses, electronic servo presses combine their advantages and can realize

any type of stamping production at any stage of the stroke, and the pressure curve can also be arbitrarily programmed.

4. The classification of electronic servo presses includes servo crank presses, servo connecting rod presses, servo screw presses and Servo hydraulic presses.

The main difference between different types of servo presses lies in their transmission methods and application areas. For example, the servo crank press controls

the movement of the slide through the motor, while the servo screw press uses a screw transmission method.

5. In general, electronic servo presses play an increasingly important role in modern manufacturing due to their high precision, high efficiency and flexibility.
